18 Channel Through Bore Slip Ring High Current Rotary Electrical Connector

Name: 18 Channel Through Bore Slip Ring High Current Rotary Electrical Connector
Brand: SPR-ing
Price: 200 USD

China 18 Channel Through Bore Slip Ring High Current Rotary Electrical Connector wholesale

Brand Name : SPR-ing

Model Number : SP013018

Place of Origin : Shenzhen

MOQ : 1

Price : 200-800USD

Payment Terms : L/C,T/T

Supply Ability : 1000/month

Delivery Time : 1 week

Packaging Details : Carton

Rotating Speed : 0-10000 rpm

Design loop : 18

Working Life : 10 million circle

Dynamic Resistance Change : ≤20mΩ

Working Temperature : -50℃ ~ 80℃

Insulation Resistance : 200MΩ/250V/DC

Maximum Current : 1A

Shell Material : 304 stainless steel

Contact Now

18 Channel Through Bore Slip Ring High Current Rotary Electrical Connector

The SP013018 high-speed electrical slip ring provides stable and reliable power and signal transmission for rotating devices operating at high speeds. This miniature slip ring is widely used in industrial testing systems and high-speed rotating machinery.

Application Areas

Used for high-speed testing platform strain gauge signals, thermocouple signals, and similar applications including aircraft engine testing, high-speed rail component testing, and automotive wheel hub performance testing.

Technical Parameters

Electrical Specifications

Design Loop	≤18
Insulation Resistance	250MΩ/250V/DC
Rated Voltage/Current	80VDC /1A
Dielectric Strength	>300VAC/50Hz/60s
Dynamic Resistance Change Value	≤20mΩ
Wire Length	Standard 400mm (adjustable according to requirements)

Mechanical Specifications

Rated Speed	0-10000 rpm
Working Life	10 million rpm
Operating Temperature	-50℃ ~ 80℃
Operating Humidity	≤80%
Contact Material	Gold-gold
Shell Material	304 stainless steel
Maximum Starting Torque	0.5N.cm

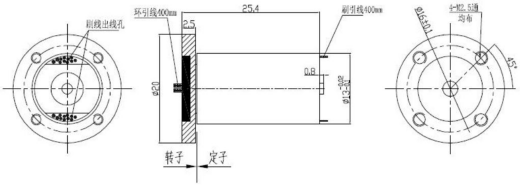

Outline Drawing

18 Channel Through Bore Slip Ring High Current Rotary Electrical Connector

Technical Advantages

Friction Pair Technology: Gold metal contact technology ensures ultra-long service life
Integrated Casting Process: Ensures concentricity between ring groove and bearing ≤ 0.01mm precision
Mirror Processing Technology: Contact surface smoothness reaches Ra0.02 for more reliable contact
Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm for high precision and stable performance
Advanced Brush Wire Modulation: Near-zero pressure brush design extends slip ring life by 1/3
High Speed Capability: Maximum speed of 8000 revolutions per minute (with cooling system)
Extended Lifespan: Maximum lifespan of up to 100 million revolutions per minute
